  • JOSO High Strength Welded Steel Chains
  • Editor：Hangzhou Handun Machinery Co., LtdDate：2016-03-09 14:26 Click：

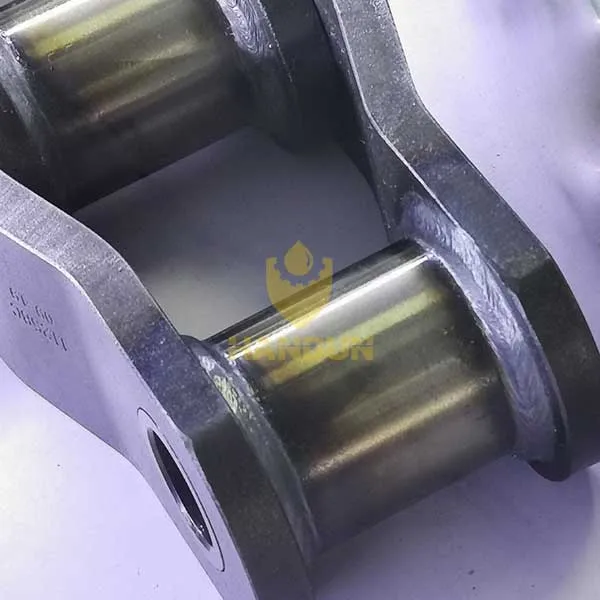

Welded Steel Chains





Usually, the chain is with offset sidebar. Some application need straight sidebar. It also can be welded with attachments. It provide dependable operation with long wear life; the ability to accept shock loads and freedom from high maintenance costs.

The chain could be welded with many type of attachment for special application.


WR Type pin heat treated
WH Type all parts heat treatment
WHX Type all patrs heat treated and pin surface induction hardened.
WSS Type all parts in stainless steel, pin and bush with heat treated.



Our JOSO Chains have gained a reputation as the lon-gest lasting, most reliable chains available for some severe applications.
All our JOSO products meet the highest demands when it comes to wear resistance, dynamic loads,conveying of abrasive media, or with higher temperature, impact.



- High fatigue strength
- High wear resistance
- Reliability and guarantee quality
- Consistency of all parts.



Chain No.
Pitch
Inner Width
Bush Dia
Plate Thickness
Tension Strength
WH78
66.27
28.4
22.23
6.35
146
WH82
78.1
38.1
27
6.35
133
WH124
101.6
41.2
31.75
9.53
307
WH111
120.9
57.15
31.75
9.53
266.7
WH106
152.4
38.1
31.75
9.53
250
WH132
153.67
73
44.45
12.7
511
WH150
153.67
73
44.45
12.7
543
WH155
153.67
73
44.45
15.88
779
WH157
153.67
76.2
44.45
15.88
779
WH159
155.575
69.85
48.3
15.88
935
WH200
155.575
69.85
48.3
15.88
846


Our JOSO welded link chain offer you highest strength. We use special material, high precision process and select best welding way to maximum the strength of chain.




-Handun Catalogue
Welded Steel Chains
